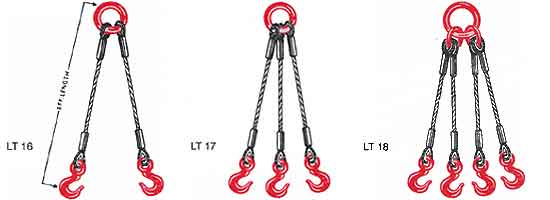

Multiple
Leg Steel Wire Rope Slings |
|
|
|
 |
|
|
|
|
|
The
Values of Slings for Single Part is given in our Catalogue for
more details please ask for a Copy for complete Specification. |
|
|
|
|
|
Please
Note the following instructions while Ordering Slings |
|
1) S.W.L. at 90o
angle for two leg slings is obtained by multiplying the value of
single leg by 1.4 times |
|
2) S.W.L. at 90o for
three or four leg slings is obtained by multiplying the values of
single leg slings by 2.1 times. |
|
3) Enhanced the S.W.L. by
using I.W.R.C. (steel core) ropes with 6x36 construction. S.W.L.
obtained by dividing the breaking strength by 5 times |
|
|
|
|
|
EXAMPLES : |
|
2 Leg Slings
at 0o angle
SWL 10 Tons |
} |
Single Leg SWL
ie5.0 Tons x 1.4 = |
SWL 7 Tons
at 90o angle
for 2 Leg |
|
|
|
|
|
|
3 or 4 Leg
Slings at0oangle
SWL 10 Tons |
} |
Single Leg SWL ie2.5 Tons x 2.1 = |
SWL 5.25 Tons
at 90o angle
for 3 or 4 Leg |
|
|
|
|
|
|
|
|
|
|
|
