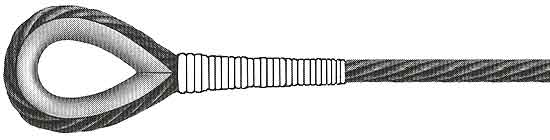

Hand
Spliced Slings |
|
Meets
IS : 2762 |
|
 |
|
Larger
diameters with Improved Construction For Heavy Loads |
|
Table
: |
|
Size
MM |
Eff Length
Range /Mtrs |
Loops
MTRS |
SWL
Tons |
Recommended
Constructions |
38
44
50
56
65
75/80 |
6 to 16
6 to 16
6 to 20
8 to 25
8 to 25
8 to 25 |
1
1
1.5
1.5
2
2 |
16
20
30
37
50
80 |
6 x 36, IWRC
6 x 36, IWRC
6 x 36, IWRC
6 x 36, or 6 x 41, IWRC
6 x 36, or 6 x 41, IWRC
6 x 36, or 6 x 41, IWRC |
|
|
|
|
|
|
|
|
|
We provide
in house testing facility to test wire ropes upto 51/2 'diameters
in any length for its break/proof load values, attached with
any kind of fittings at one end. Either it can be a Thimbled Eye
or Socketed Eye. We have installed special wire
rope Grippers of LUCKER (USA). Which can take the proof load
values of the above end fittings without creating permanent
fracture or Klink at the other end. Liftechnique is the only company in
India with such exclusive facilities. |
|
|
|
|
|
|
|
|
|
The
gripper & other equipments are under final Inspection
for onward display to our factory in India, seen above are
sellers representative & the past owners of 500 tons
proof loader machines & grippers 1) Mr. Mike
Mathiasen 2) Mr. James Lopcie 3) Mr. Joseph
Shephard & other representatives of Briden American
Corporation. ( The largest Wire rope manufacturer Company in
the world. ) |
|
|
|
|

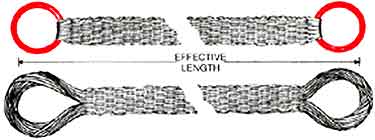

Multipurpose
Braided
/ Plaited Belt Lifting Slings |
|
|
|
|
|
|
|
|
|
Available in Standard
Lengths of 10 Mtrs & 10" width in capacities ranging from
10,20,30 & 40 Tons, with steel core Ropes. Smaller widths and
lengths can also be manufactured. |
|
|
|
Belt
Slings with rings ready for dispatch at our Factory |
|
|
|
|
|
|
|

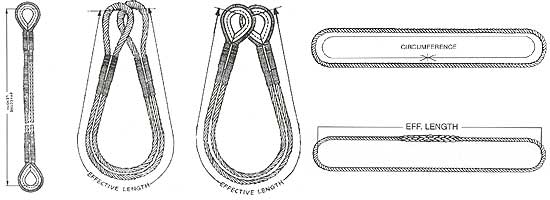

Grommet
& Endless Slings |
|
|
|
 |
|
|
|
|
|
APPLICATIONS
FOR GROMMET
1) Grommet Slings can be fabricated in very short circumference.
The reason is this: Grommet Slings are made from one continous
length of strand or wire rope. This requires only one tuck-in
point as compared with the six tuck-in points needed to
manufacture an endless sling.
2) A grommet consists of an endless rope having 6/1 construction
& is used where high ultimate breaking strength of the rope is
required beyond the limits of a single part rope. |
|
|
|
|
|
|
|
|
|
|
