The hooks are made from the best available materials and thermal-refining methods, and the safety points marked on the body simplfy safety inspection. 		  HHC 0.5 ~ 5G

Hook for lifting and handling of steel plates and various steel structures.

FEATURES
  • The roller at the head of the hook will not damage the sling rope.
  • The sharp hook point is effective when inserting into a small clearance.

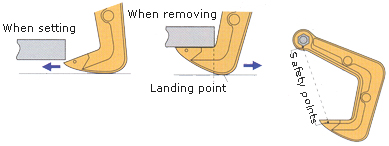

  • The landing point is at the back of the hook.
  • This unique design makes it extremely simple to remove the hook from the work piece.
  • The body is made of die-forged special alloy steels, which is optimally tempered for maximum strength and durability.
  • The main body is a baked-on finish.

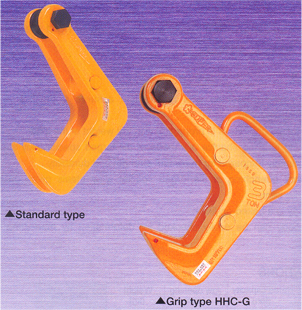

  • The HHC-G type is equipped with a handle for easy operation.
    • SPECIFICATIONS

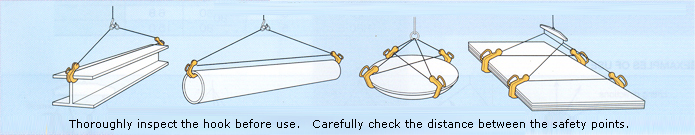

    EXAMPLES OF USE
    Always use lifting hook at 3 or more points for safety and lift pipes and beams at 2- points of both ends

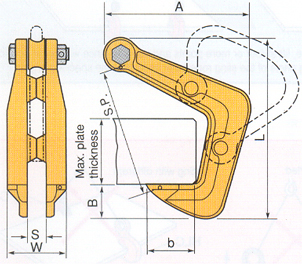

    		SPECIFICATIONS-DIMENSIONS TABLE
    Item No. Rated capacity (ton) Max. plate thickness L A B b S W S.P. Weight (kg)
    HHC 0.5 0.5 58 152 121 27 45 30 63 1 1 1 1.1
    HHC 1 1 65 178 144 33 51 40 80 126 2.1
    HHC 3 3 95 264 215 49 73 65 1 25 187 7.8
    HHC 5 5 125 342 279 60 96 85 160 243 16.5
    HHC 2G 2 80 223 182 42 62 54 105 154 4.9
    HHC3G 3 95 264 215 49 73 65 125 187 8.4
    HHC 5G 5 125 342 279 60 96 85 160 243 17.2

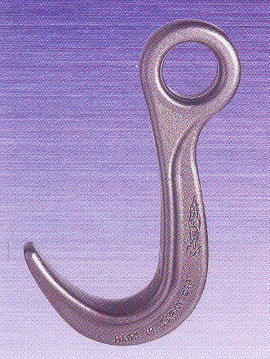

      LIFING HOOK (for Steel decks)

    		FKH 1

    FEATURES
  • The hook is ideal for lifting and installation of steel deck.
  • Lightweight and simple design for easy operation
  • The body is made of die-forged special alloy steels, which is optimally tempered for maximum strength and durability.

    • Always lift work pieces at 2 or more points for safety.

    SPECIFICATIONS
    Item No. Rated capacity(ton) Weight (kg)
    FKH1 1 0.95
