Grooveless Forged Type (Indian Design)
Select the positioning & arrangements of Sockets		 Meets
IS:2485 - 1963
Nominal Size
(1)
mm		 A

(2)
mm		 B

(3) mm		 C

(4) mm		 D
dia
(5) mm		 E dia
(6) mm		 F dia
(7)
mm		 G *G1
(8) mm		 H

(9) mm		 J

(10) mm		 K
dia
(11) mm		 L

(12) mm		 M

(13) mm		 N

(14) mm		 P dia
(15) mm		 R

(16) mm		 S

(17) mm		 T

(18)
mm		 W
dia
(19) mm		 X

(20)
mm		 Y

(21)
mm		 Split Cotter Pin Dia
(22) mm		 Proof Load


(23) mm		 Max. Working Load

(24)
mm
8 44 32 30 15 10 15 7 15 90 12 16 30 4 28 42 2 3 16 4 1.0 4 1500 750
10 50 45 40 20 12 20 10 20 115 16 22 42 6 40 543 2 4 20 5 1.0 4 2000 1000
12 60 50 45 25 15 25 10 22 132 20 28 48 6 44 62 3 6 25 7 1.0 4 4000 2000
14 60 50 50 25 17 30 10 22 132 20 28 48 6 44 62 3 6 25 7 1.5 4 4500 2250
16 70 60 60 30 20 30 14 27 155 24 32 58 7 50 75 4 7 30 8 1.5 5 6000 3000
18 75 65 70 35 22 40 14 33 172 28 38 70 8 64 85 5 8 36 10 2.0 5 8500l 4250
22 85 75 70 40 26 45 14 40 195 32 42 78 10 70 95 5 8 40 11 2.5 6 11000 5500
25 105 90 85 50 30 50 18 45 238 38 48 88 12 86 110 6 10 48 13 2.5 8 15000 7500
29 115 100 90 60 35 55 20 50 261 42 50 94 14 92 115 7 12 52 14 3.0 8 19000 9500
32 130 110 110 65 40 65 24 60 292 48 54 110 16 104 135 8 13 60 16 3.0 8 23000 11500
35 150 115 125 70 43 75 26 65 337 58 65 135 20 124 165 9 14 72 19 4.0 10 28500 14250
38 150 115 125 70 46 75 26 65 337 58 65 135 20 124 165 9 14 72 19 4.0 10 33500 16750
41 150 115 125 70 50 75 26 65 337 58 65 135 20 124 165 9 14 72 19 4.0 10 38500 19250
Note: For Wire Ropes Of Intermediate Size, The Next Larger Size Of Socket Shall Be Used.
Grooved Open Spelter Sockets (Western Design)

Cast Alloy Steel 15/8 thru 4" Forged 3/4" thru V/2

Spelter socket terminations have an efficiency rating of 100% based on the catalog on recommended use with 6x7, 6x19 or 6x37, IPS or EIPS, RHRL/LHRL, FC or IWRC wire rope
Rope Dia Weight Each (lbs) Dimensions (in.)
A C D F G H J L M N
1 15.50 10.50 2.00 2.00 1.13 1.78 3.59 4.44 4.00 3.75 0.88
1 1/8 21.50 11.75 2.25 2.25 1.25 2.00 4.00 4.94 4,50 4.12 1.00
1 1/4-1 3/8 31.00 13.12 2.50 2.50 1.50 2.28 4.56 5.44 5.00 4.75 1.13
1 1/2 47.25 15.12 3.00 2.75 1.63 2.75 5.25 6.00 6.00 5.38 1.19
1 5/8 53.88 16.25 3.00 3.00 1.75 3.00 5.50 6.50 6.50 5.57 1.31
1 3/4-1 7/8 82.00 18.25 3.50 3.50 2.00 3.13 6.38 7.50 7.00 6.50 1.56
2-2 1/8 125.00 21.50 4.00 3.75 2.25 3.75 7.38 8.50 9.00 7.00 1.81
2 1/4-2 3/8 167.00 23.50 4.50 4.25 2.50 4.00 8.38 9.00 10.00 7.75 2.13
2 1/2-2 5/8 252.00 25.50 5.00 4.75 2.88 4.50 9.25 9.75 10.75 8.50 2.38
2 3/4-2 7/8 315.00 27.25 5.25 5.00 3.12 4.88 10.50 11.00 11.00 9.00 2.88
3-3 1/8 380.00 29.00 5.75 5.25 3.38 5.25 11.12 12.00 11.25 9.50 3.00
3 1/4-3 3/8 434.00 30.88 6.25 5.50 3.62 5.75 11.88 13.00 11.75 10.00 3.12
3 1/2-3 5/8 563.00 33.25 6.75 6.00 3.88 6.50 12.38 14.00 12.50 10.75 3.25
3 3/4- 4 783.00 36.25 7.50 7.00 4.25 7.25 13.62 15.00 13.50 12.50 3.50

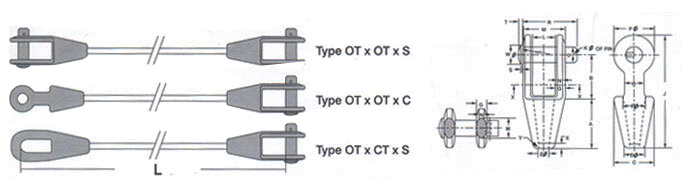

Note: Above drawing illustrates grooves can be used on sockets.
