Confirming to BS : 3481 (Part II) Din : 61360 ISO : 4878 |

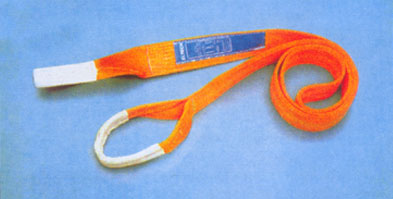

| Specifications (Eye & Eye Type) |
| WIDTH |
STRAIGHT |
CHOKER |
BASKET HITCH |
| COLOUR |
 |
 |
 |
 |
 |
| 25 mm |
1,000 kg |
800 kg |
2,000 kg |
1,800 kg |
1,400 kg |
| 50 mm |
2,000 kg |
1,600 kg |
4,000 kg |
3,600 kg |
2,800 kg |
| 75 mm |
3,000 kg |
2,400 kg |
6,000 kg |
5,400 kg |
4,200 kg |
| 100 mm |
4,000 kg |
3,200 kg |
8,000 kg |
7,200 kg |
5,600 kg |
| 125 mm |
5,000 kg |
4,000 kg |
10,000 kg |
9,000 kg |
7,000 kg |
| 150 mm |
6,000 kg |
4,800 kg |
12,000 kg |
10,800 kg |
8,400 kg |
| 200 mm |
8,000 kg |
6,400 kg |
16,000 kg |
14,400 kg |
11,200 kg |
| 250 mm |
10,000 kg |
8,000 kg |
20,000 kg |
18,000 kg |
14,000 kg |
| 300 mm |
12,000 kg |
9,600 kg |
24,000 kg |
21,600 kg |
16,800 kg |
| 400 mm |
16,000 kg |
12,800 kg |
32,000 kg |
28,800 kg |
22,400 kg |
|
|

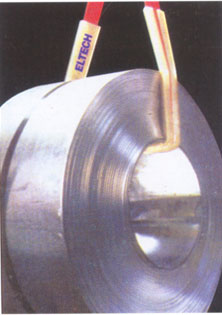

Coil Lifting Sling with Anti cutting
sleaves as protection to sling surface
|
|
BRIEF TECHNICAL SPECIFICATION
Material of construction 100% Polyester
Working temperature -4°C to + 180°C.
Tensile strength As specified at W.L.L. 10-13%
Elasticity extension a break.
Chemical resistance Polyester is resistant to mild Acid but degrade in alkalies.
Advantages over Steel Rope or Chain
ELTECH polyester Slings are considerably lighter than a metal product of comparable lifting performance and as a consequence are both safer and easier to handle. The main safety and handling advantages of the ELTECH Slings are listed below:
Do not weaken with age.
Absorb shocks.
No corrosion-wire ropes can rust unseen from the inside.
Easier to inspect-if it looks all right, it is all right.
Less weight means easier, quicker working, less risk of back injuries.
Less weight also means cheaper transport-only 20% of steel chain for example.
Because of the suppleness of polyester, the ELTECH Sling accommodates irregularities of the load. Chain link may bend
around the load, twisted wire rope may grip in the wrong place creating imbalance.
Less risk of damage to sensitive or painted surface.
|
|

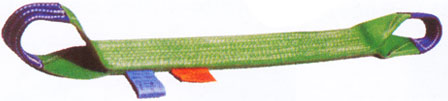

3-4 Coats Triplex & Quadruple Webbing Slings, from 3 Tons to 60 Tons for special loads
|
|
| Specifications (Eye & Eye Type) |
| |
LTCK 50 |
LTCK 70 |
LTCK 100 |
LTCK 125 |
LTCK 150 |
LTCK 200 |
LTCK 250 |
LTCK 300 |
| 3-COATS SWL KGS |
3.000 |
4.500 |
6.000 |
7.500 |
9.000 |
12.000 |
15.000 |
18.000 |
| 4- COATS SWL KGS |
4.000 |
5.500 |
7.000 |
10.000 |
12.000 |
16.000 |
20.000 |
24.000 |
|
| NOTE: |
 |
If slings used Choker minus 20% value from SWL. |
 |
If slings used as Basket add 100% value of SWL. |
|
| Note: In the interest of constant research & development we reserve the right to change the design & specifications without notice. |
|
|
|
|
|
