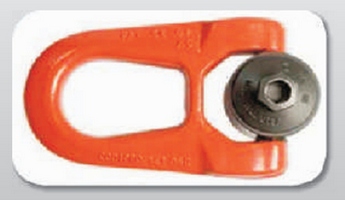

What CODIPRO DRR-Swivel Link & DSS Shackle Eye Bolts has to offers as Compared to other International Brands

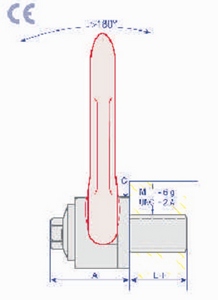

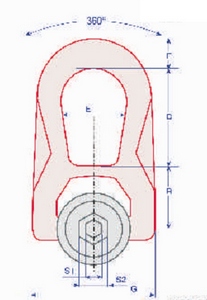

Referance WILL CMU Safoty factor Diametor P L1 N.m S1 S2 A B C D E F G Weight
DSR M 4* 0,05 TO 5 M4 (X0,7) 15 2 3 33 30 30 38 27 14 53 0.3 Kg
DSR M 5* 0.075 TO 5 M5 (xD,8) 15 3 4 33 30 30 38 27 14 53 0.3 Kg
DSR M 6* 0.1 TO 5 M6 (x1) 15 4 5 33 30 30 38 27 14 53 0.3 Kg
DSR M 8 0.3 TO 5 M8 (x1,25) 14 6 8 16 33 30 30 38 27 14 53 0.3 Kg
DSR M 10 0.6 TO 5 M10 (x1,50) 17 10 8 16 33 30 30 38 27 14 53 0.3 Kg
DSR M 12 1 TO 5 M12 (c1.75) 21 15 8 16 33 30 30 38 27 14 53 0.3 Kg
DSR M 14* 1.3 TO 5 M14 (x2) 23 30 8 20 45 42 45 54 38 17 76 0.9 Kg
DSR M 16 1.6 TO 5 M16 (x2) 27 50 8 20 45 42 45 54 38 17 76 0.9 Kg
DSR M 18* 2 TO 5 M18 (x2.5) 27 70 8 20 45 42 45 54 38 17 76 0.9 Kg
DSR M 20 2.5 TO 5 M20 (x2,5) 30 100 8 20 45 42 45 54 38 17 76 0.9 Kg
DSR M 22* 3 TO 5 M22 (x2.5) 33 120 14 24 62 55 60 83 55 25 117 2.6 Kg
DSR M 24 4 TO 5 M24 (x3) 36 160 14 24 62 55 60 83 55 25 117 2.6 Kg
DSR M 27* 5 TO  5 M27 (x3) 40 200 14 24 62 55 60 83 55 25 117 2.6 Kg
DSR M 30 6.3 TO 5 M30 (x3.5) 45 250 14 24 62 55 60 83 55 25 117 2.6 Kg
DSR U 516 0.650 LBS 5 UNC 5/16"-1A 15 7  F1 516" 5/8" 33 30 30 38 27 14 53 0.3 Kg
DSR U 038 1.200 LBS 5 UNC3/8"-16 17 8 F1 516" 5/8" 33 30 30 38 27 14 53 0.3 Kg
DSR U 050 2.200 LBS 5 UNC 1/2"-13 21 12 F1 516" 5/8" 33 30 30 38 27 14 53 0.3 Kg
DSR U 058 3.800 LBS 5 UNC 5/8"-11 21 40 F1 516" 20 45 42 45 54 38 17 76 0.9 Kg
DSR U 075 5.500 LBS 5 UNC 3/4"-10 30 80 F1 516" 20 45 42 45 54 38 17 76 0.9 Kg
DSR U 078 6.600 LBS 5 UNC 7/8"-9 33 100 F1 916" 24 62 55 60 83 55 25 117 2.5 Kg
DSR U 100 10.000 LBS 5 UNC I" -8 36 125 F1 916" 24 62 55 60 83 55 25 117 2.6 Kg


Referance WILL CMU Safoty factor O P L N.m S A B C D E F F G Weight
DSS M 30 7.3 TO 5 M30 (x3,5)     45 250 19 61 31 70 104 73 145 29 5.5 Kg
DSS M 33* 8 TO 5 M33 (x3,5)     50 250 19 61 31 70 104 73 145 29 5.5 Kg
DSS M 36 10 TO 5 M36 (x4)     54 320 19 61 31 70 104 73 145 29 5.5 Kg
DSS M 33* 8 TO 5 M33 (x3,5)     50 250 19 61 31 70 104 73 145 29 5.5 Kg
DSS 36X3* 10 TO 5 M36 (x3)     54 320 19 61 31 70 104 73 145 29 5.5 Kg
DSS M 39* 10 TO 5 M39 (x4)     58 320 19 61 31 70 104 73 145 29 5.7 Kg
DSS M 42 12.5 TO 5 M42 (x4Kg5)     63 400 19 61 31 70 104 73 145 29 5.8 Kg
DSS M 42x3* 12.5 TO 5 M42 (x3)     63 400 19 61 31 70 104 73 145 29 5.8 Kg
DSS M45* 15 TO 4 M45 (x4,5)     63 400 19 61 31 70 104 73 145 29 5.7 Kg
DSS M 48 20 TO 4 M48 (x5)     68 600 19 79 38 90 125 91 184 33 11 Kg
DSS M 48x3* 20 TO 4 M48(x3)     68 600 19 79 38 90 125 91 184 33 11 Kg
DSS M 48x4* 20 TO 4 M48 (x4)     68 600 19 79 38 90 125 91 184 33 11 Kg
DSS M 52* 20 TO 4 M52 (x5)     68 600 19 79 38 90 125 91 184 33 11.2 Kg
DSS M 56 25 TO 4 M56 (X5,5)     78 600 19 79 38 90 125 91 184 33 11.3 Kg
DSS M 56x4* 25 TO 4 M56 (x4)     78 600 19 79 38 90 125 91 184 33 11.4 Kg
DSS M 64 32.1 TO 4 M64 (x6)     90 600 19 79 38 90 125 91 184 33 12.2 Kg
DSS M 64x4* 32.1 TO 4 M64 (x4)     90 600 19 79 38 95 125 91 184 33 12.2 Kg
DSS M 72* 25 TO 4 M72 (x6)     90 600 19 79 38 95 125 91 184 33 14 Kg
DSS M 72X4* 25 TO 4 M72 (x4)     90 600 19 79 38 95 125 91 184 33 14 Kg
DSS M 80* 32.1 TO 4 M80 (x6)     90 600 19 79 38 95 125 91 184 33 15 Kg
DSS M 90* 32.1 TO 4 M90 (x6)     90 600 19 79 38 95 125 91 184 33 15.5 Kg
DSS M 100* 32.1 TO 4 M100 (x6)     90 600 19 79 38 95 125 91 184 33 16.5 Kg
DSS U 125 14,000 LBS 5 UNC 1xh" - 7     45 200 3/4" 61 31 64 104 73 145 29 5.4 Kg
DSS U 138* 20,000 LBS 5 UNC 1xh" - 6     54 300 3/4" 61 31 64 104 73 145 29 5.4 Kg
DSS U 150 20,000 LBS 5 UNC 1xh" - B     61 300 3/4" 61 31 64 104 73 145 29 5.4 Kg
DSS U 200 50,000 LBS 4 UNC wx2" - B     76 450 3/4" 79 38 90 125 91 184 33 11.1 Kg
