IS4190 - 1967

Z according to IS: 1368-1967 'Dimensions of ends of bolts and screws (revised) X according to IS: 1369-1961 ' Dimensions of screw thread runouts and undercuts

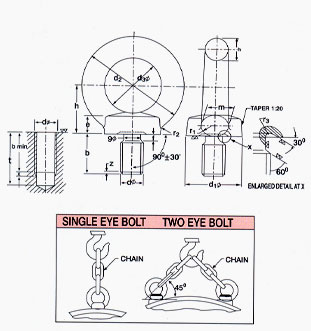

TWO EYE BOLTS SWL Kg. SINGLE EYE BOLTS SWL Kg. Direction of Sling Legs on Eye Bolts with Collars
- 150 M10
- 220 M12
- 380 M16
- 570 M20
    M20x2
1000 1050 M24 M24x2
1800 1700 M30 M30x2
2600 2500 M36 M36x3
3600 3400 M42 M42x3
5200 5200 M48 M48x3
6500 6500 M56 M56x4
8400 8700 M64 M64x4
12000 13000 M72x6 M72x4
18000 17000 M80x6 M80x4
24000 20000 M 100x6 M 100x4
d M10 M12 M16 M20 M24 M30 M36 M42 M48 M56 M64 M72x6 M80x6 M100x6
M20x2 M24X2 M30x2 M36x3 M42x3 M48x3 M56x3 M64X3 M72x4 M80x4 M100x4
b(is15) Nom 18 22 28 30 38 45 55 65 70 80 90 105 120 130
Max 18.35 22.42 28.92 30.42 38.50 45.50 55.60 65.60 70.60 80.60 90.70 105.70 120.70 130.80
Min 17.65 21.58 27.58 29.58 37.50 44.50 54.50 64.40 69.40 79.40 89.30 104.30 119.30 129.20
d1(is16) Nom 25. 30 35 40 50 65 75 85' 100 110 120 150 170 190
Max 25.65 30.65 35.80 40.80 50.80 65.95 75.95 86.10 101.10 11.10 121.10 151.25 171.75 191.45
Min 24.35 29.35 34.20 39.20 49,20 64.05 74.05 83.90 98.90 108.90 118.90 148.75 168.75 188.55
d2(is16) Nom 45 54 63 72 90 108 126 144 166 184 206 260 296 330
Max 45.80 54.95 63.95 72.95 90.10 109.10 127.25 145.25 167.75 185.45 207.45 261.60 297.60 331.80
Min 44.20 53.05 62.05 71.05 88.90 106.90 124.75 142.75 164.75 182.55 204.55 258.40 294.40 328.70
d3(is16) Nom 25 30 35 40 50 60 70 80 90 100 110 140 160 180
Max 25.65 30.65 35.80 40.80 50.80 60.75 70.95 80.95 91.10 101.10 111.10 141.25 161.25 181.25
Min 24.35 29.35 34.20 39.20 49.20 59.05 69.05 79.05 88.90 98.90 108.90 138.75 158.75 178.75
e Nom 8 10 12 14 18 22 26 30 35 38 42 50 55 60
f Nom 3 3 3 4 5 6 8 8 8 8 8 8 8 8
g(h16) Nom 7.7 9.3 13 16 19 24 30 35 ' 40 48 55 63 71 91
Max 7.70 9.30 13.00 16.00 19.00 24.00 30.00 35.00 40.00 48.00 55.00 63.00 71.00 91.00
Min 6.80 8.40 11.90 14.90 17.70 22.70 28.70 33.40 38.40 46.40 53.10 61.10 69.10 88.10
h(h16) Nom 22 26 30 35 45 55 65 75 85 95 105 130 150 165
Max 22.65 26.65 30.65 35.80 45.80 55.95 65.95 75.95 86.10 96.10 106.10 131.25 151.25 166.25
Min 21.35 25.35 29.35 34.20 44.20 54.05 64.05 74.05 83.90 93.90 108.90 128.75 148.75 166.75
k*(is16) Nom 10 12 14 16 20 24 28 32 38 42 48 60 68 75
Max 10.45 12.55 14.55 16.55 20.65 24.65 28.65 32.80 38.80 42.80 48.80 60.95 68.95 75.95
Min 9.55 11.45 13.45 15.45 19.35 23.35 27.35 31.20 37.20 41.20 47.20 59.05 67.05 74.05
m(is16) Nom 12 14 16 19 24 28 32 38 46 50 58 72 80 88
Max 12.55 14.55 16.55 19.65 24.65 28.65 32.80 38.80 46.80 50.80 58.95 72.95 80.95 89.10
Min 11.45 13.45 16.45 18.35 23.35 27.35 31.20 37.20 45.20 49.20 57.05 71.05 79.05 86.90
r1 Nom 5 5 6 7 9 11 13 15 18 20 22 27 30 32
r2 Nom 4 6 6 8 12 15 18 20 22 25 25 35 35 40
r3 Nom 1 2 2 2 2 3 3 3 4 4 4 4 4 4
tMin 24 29 35 38 47 55 66 77 83 95 106 121 136 146
'k' may be equal to 'm' also. IS: 4190 -1967.
